Avionics XDL24
Datalink robusto basado en XBee 3
XDL24 provides secure data transmission in LOS operations with a robust enclosure. It has a USB-C connection for easy integration. Compatible with internal radio in Veronte Autopilot or Digi XBee modules.
Avionics XDL24
Datalink robusto basado en XBee 3
XDL24 provides secure data transmission in LOS operations with a robust enclosure. It has a USB-C connection for easy integration. Compatible with internal radio in Veronte Autopilot or Digi XBee modules.

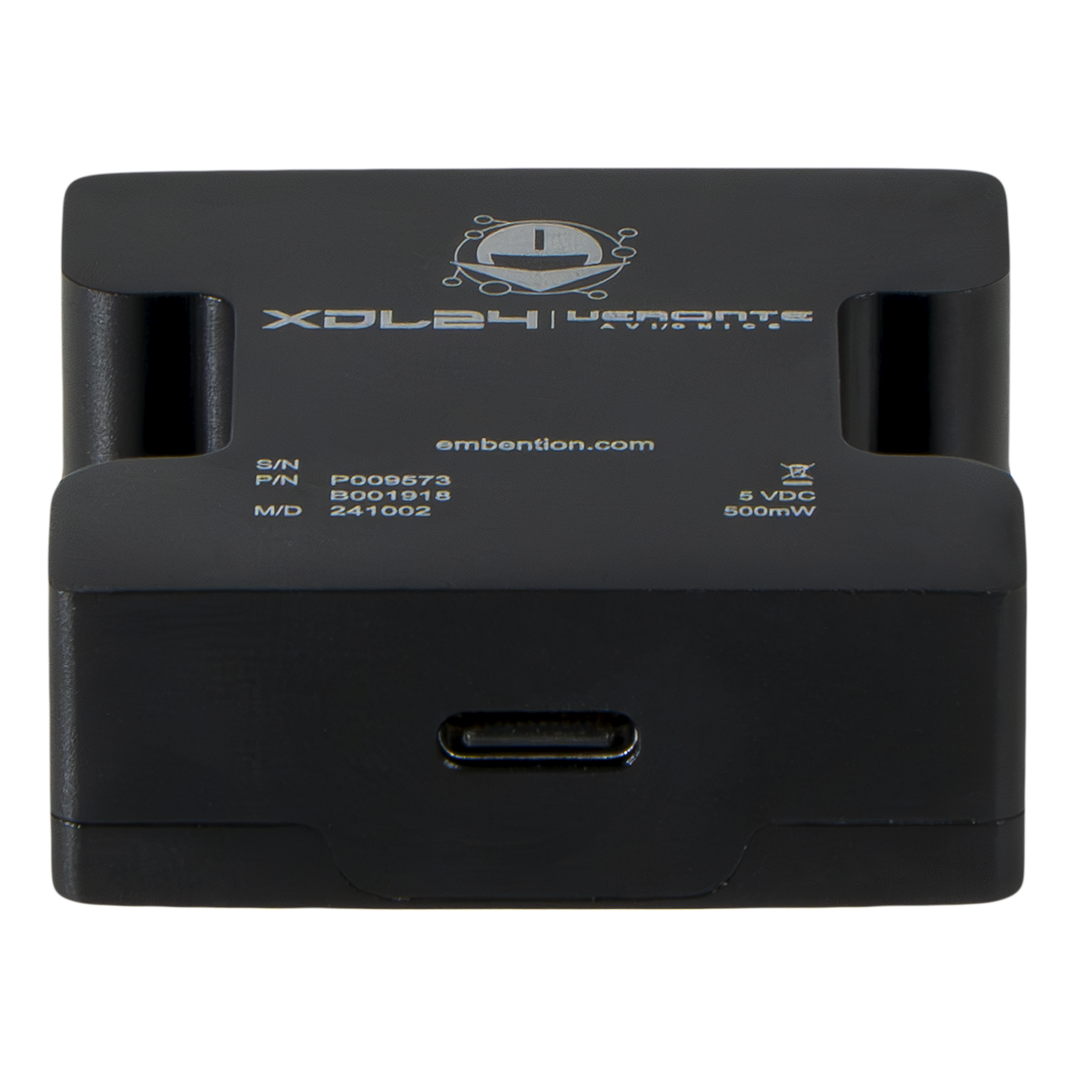

USB-C connector
Aluminum enclosure
-40º to 85ºC
Only 82g
5V Input
Secure data transmission
Ideal for applications requiring low latency and robust communications
Powered by Digi XBee 3 module
XDL24 comes integrated with an integrated Digi XBee® 3 PRO Zigbee 3.0 radio module, which enables seamless communication with other devices featuring a DIGI module, enhancing range and signal strength.
Communications module for Veronte Autopilot
It is the fastest way to communicate with the internal radio in Veronte Autopilot, offering simple connectivity for configuration, downloading telemetry, or managing mid-range drone and autonomous vehicle operations.
Control station module
The radio module can be utilized on the control station, ensuring seamless communication with Veronte Autopilot. It easily connects to a PC via USB and can be used either as a standalone tabletop unit or integrated into the GCS.
USB-C connector
-40º to 85ºC
Aluminum enclosure
Only 82g
5V Input
Secure data transmission
Ideal for applications requiring low latency and robust communications
Powered by Digi XBee 3 module
XDL24 comes integrated with an integrated Digi XBee® 3 PRO Zigbee 3.0 radio module, which enables seamless communication with other devices featuring a DIGI module, enhancing range and signal strength.
Communications module for Veronte Autopilot
It is the fastest way to communicate with the internal radio in Veronte Autopilot, offering simple connectivity for configuration, downloading telemetry, or managing mid-range drone and autonomous vehicle operations.
Control station module
The radio module can be utilized on the control station, ensuring seamless communication with Veronte Autopilot. It easily connects to a PC via USB and can be used either as a standalone tabletop unit or integrated into the GCS.
Operation Modes
The XDL24 offers three operation modes to meet a wide range of needs in different scenarios: point-to-point, point-to-multipoint, and the highly efficient repeater mode, ensuring optimal performance in all types of applications and environments.

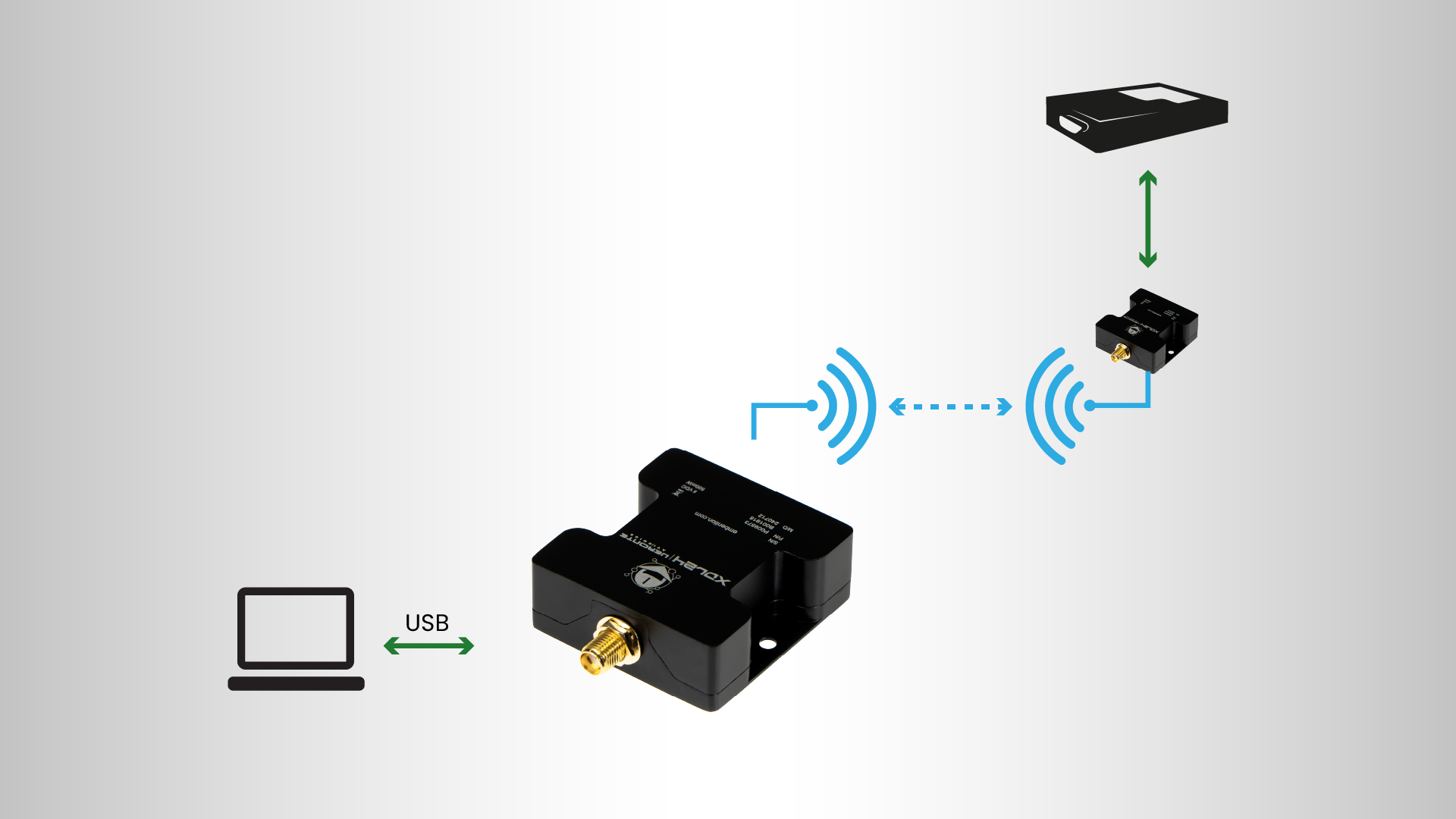

Point to Point
Provides direct communication between the ground and air segments

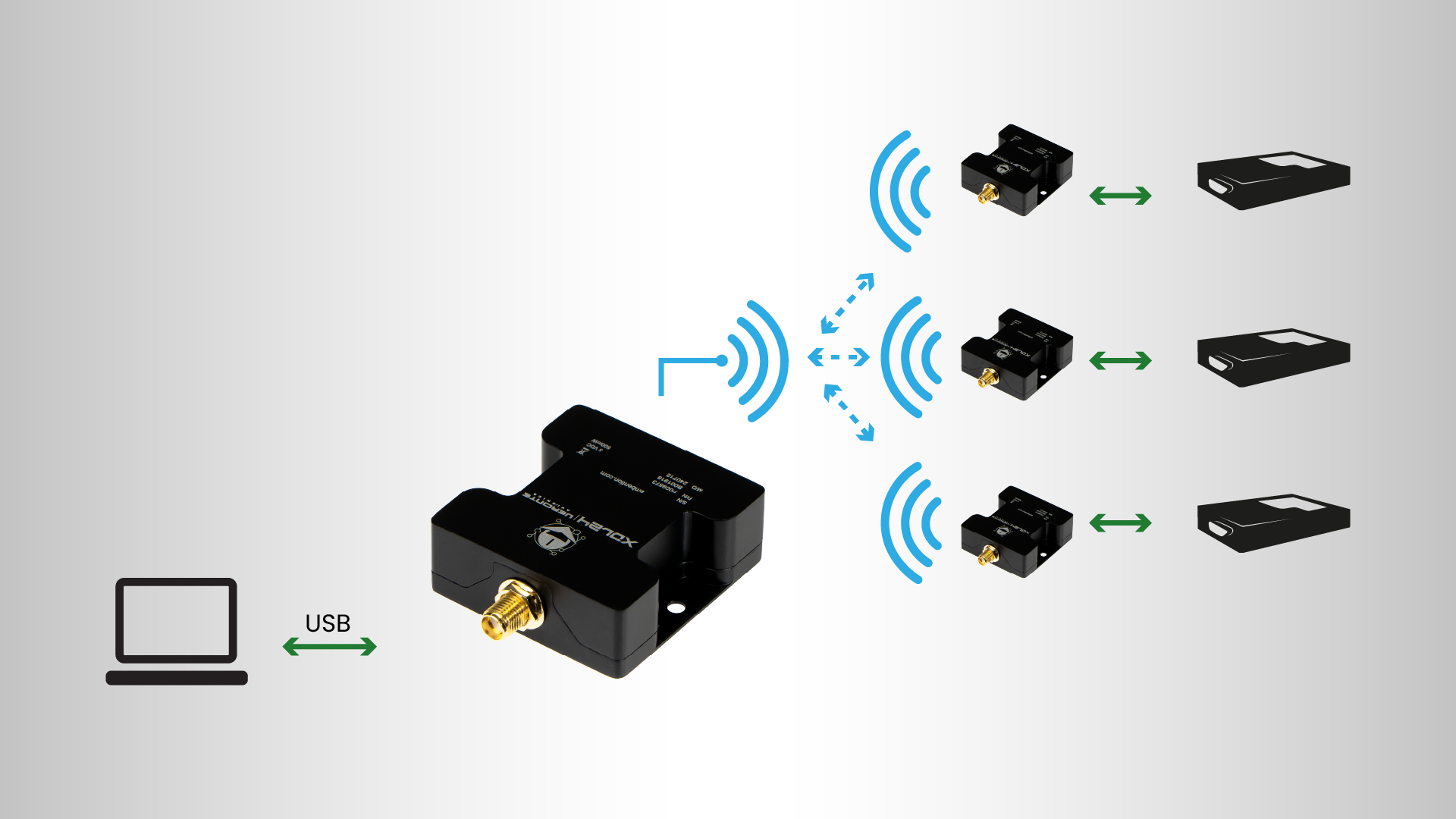

Point to Multipoint
Direct communication between ground and air segments, with multiple connections.

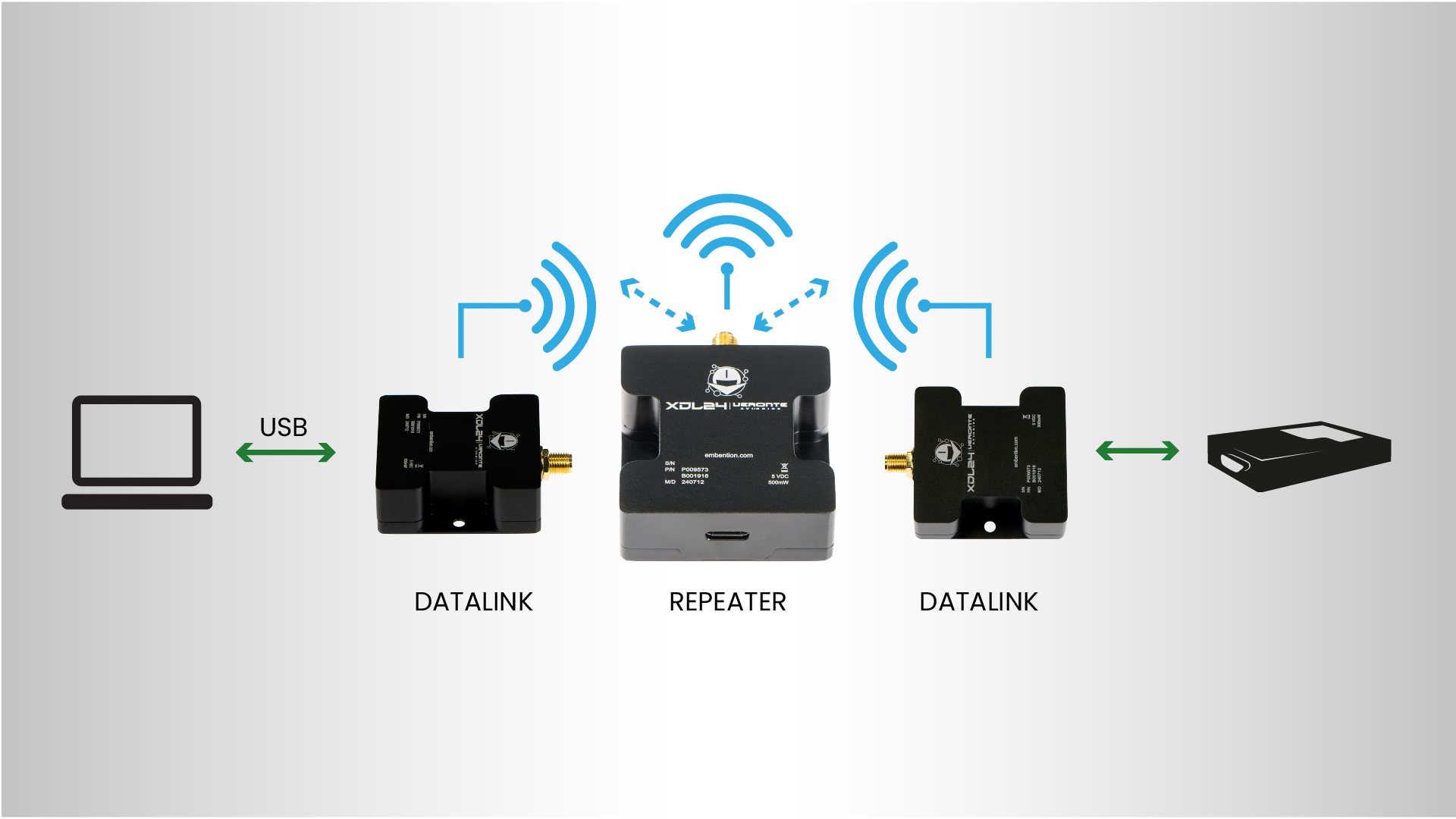

Repeater
Over long distances, XDL24 acts as a repeater between 2 radios in the system, air or ground.
Operation Modes
The XDL24 offers three operation modes to meet a wide range of needs in different scenarios: point-to-point, point-to-multipoint, and the highly efficient repeater mode, ensuring optimal performance in all types of applications and environments.
Point to Point
Provides direct communication between the ground and air segments
Point to Multipoint
Direct communication between ground and air segments, with multiple connections.
Repeater
Over long distances, XDL24 acts as a repeater between 2 radios in the system, air or ground.
High Performance
Secure data transmission in LOS operations with a robust enclosure.

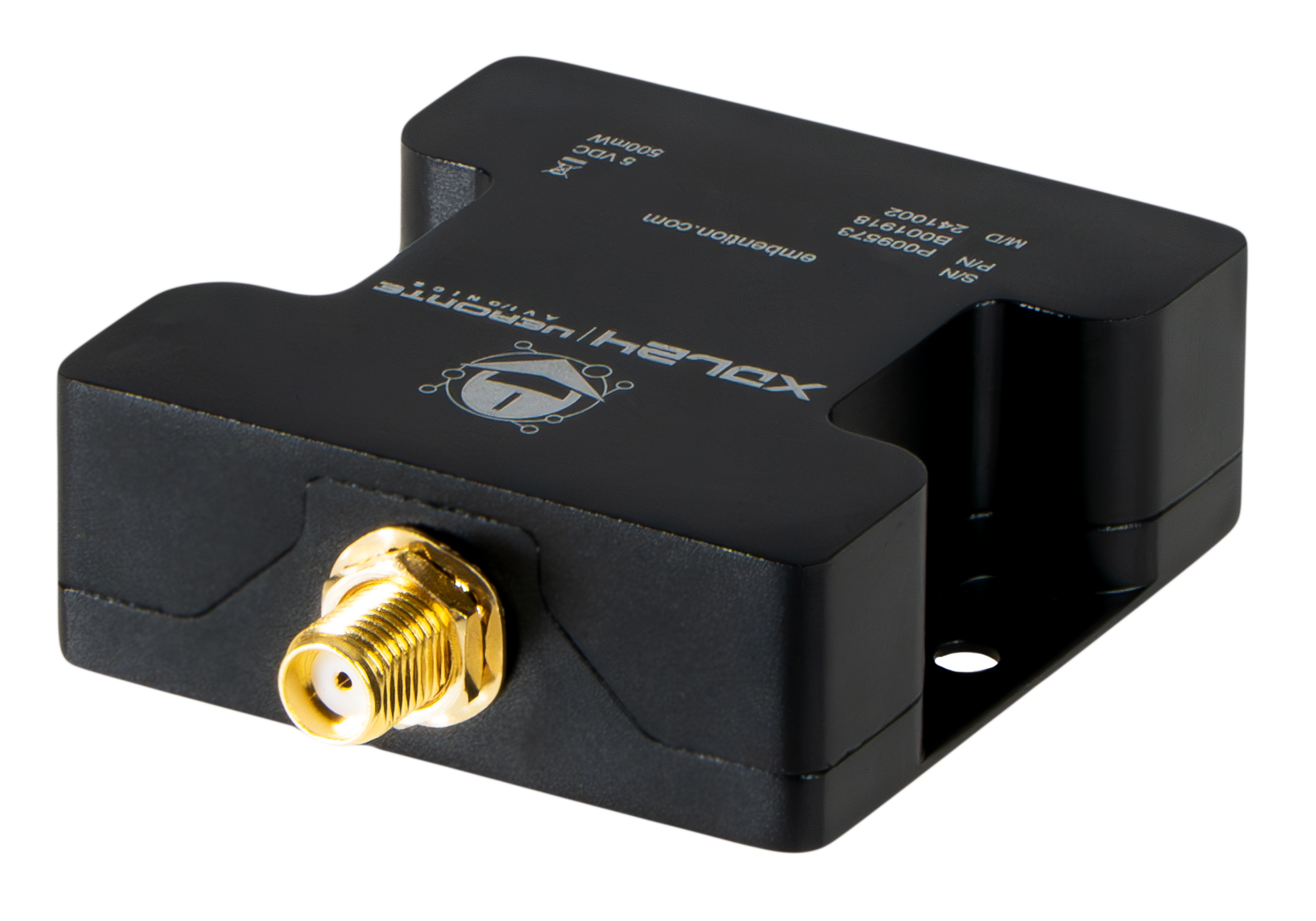

Rugged aluminum enclosure
Veronte Avionics XDL24 has an aluminum enclosure for durability, ideal for demanding environments, it ensures reliability and consistency in every operation, adapting to a wide range of adverse conditions.
Secure communications
XDL24 is ideal for applications requiring low latency and precise communication timing. It offers fast and secure data transmission in point-to-point and point-to-multipoint configurations.
IP68 Protection
The XDL24 has a robust design with IP68 certification, guaranteeing durability in challenging environments. Dustproof and waterproof, it’s built to withstand extreme conditions, offering reliable performance wherever you go.
High Performance
Secure data transmission in LOS operations with a robust enclosure.
Rugged aluminum enclosure
Veronte Avionics XDL24 has an aluminum enclosure for durability, ideal for demanding environments, it ensures reliability and consistency in every operation, adapting to a wide range of adverse conditions.
Secure communications
XDL24 is ideal for applications requiring low latency and precise communication timing. It offers fast and secure data transmission in point-to-point and point-to-multipoint configurations.
IP68 Protection
The XDL24 has a robust design with IP68 certification, guaranteeing durability in challenging environments. Dustproof and waterproof, it’s built to withstand extreme conditions, offering reliable performance wherever you go.
Product Content

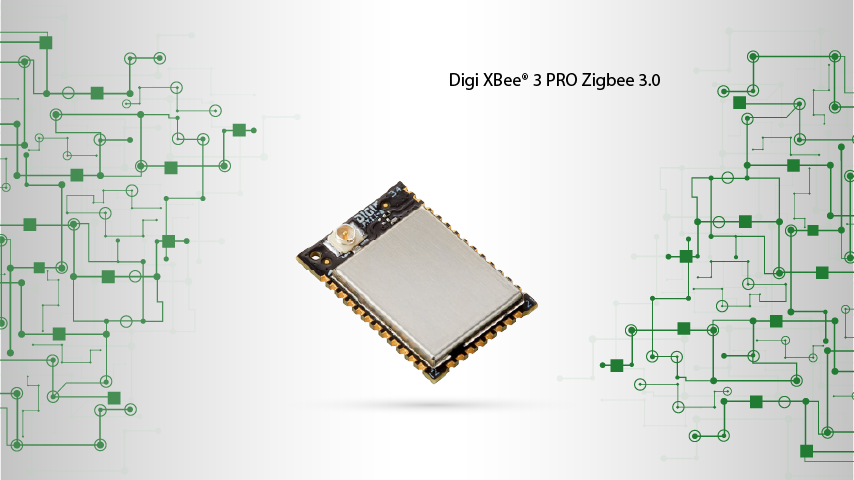

XDL24 radio module
Integrated with the DIGI XB3-24 radio module, providing reliable, high-performance wireless connectivity. Designed for applications requiring low latency and precise communication timing, it ensures robust and secure communication.

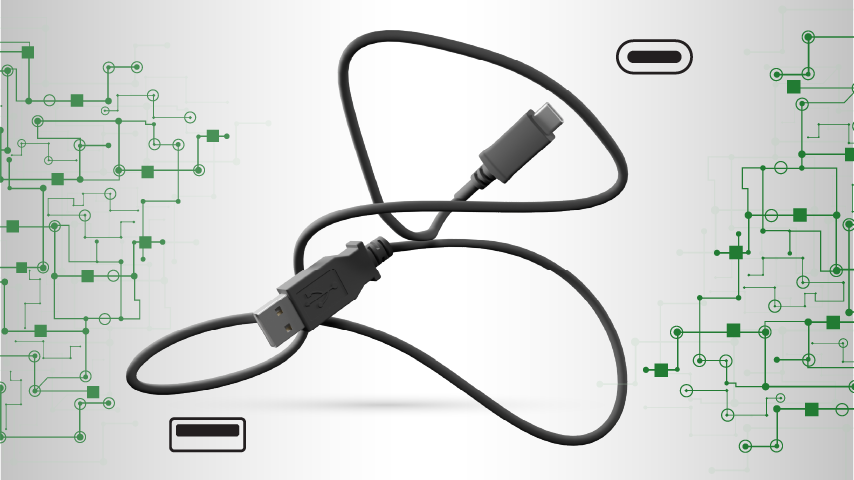

Cable
Connect the device to the XDL24 easily with a USB-C to USB-A cable, offering seamless setup and integration with minimal hassle. The 1-meter cable length provides flexibility for installation.

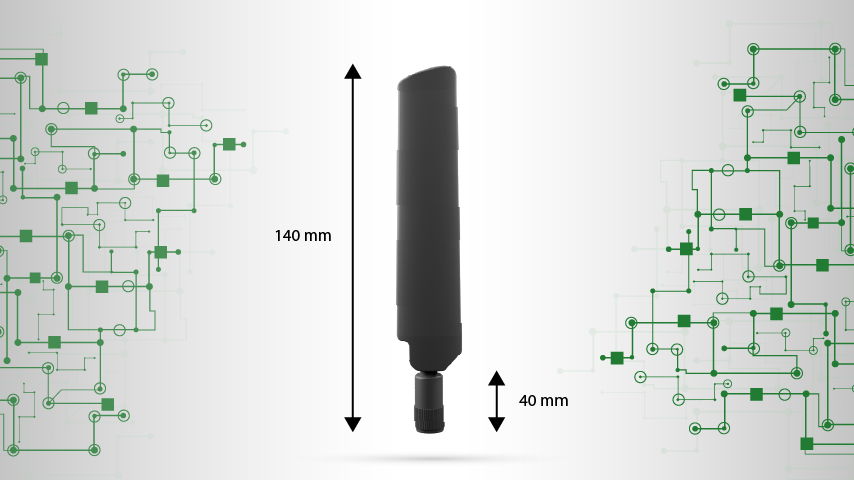

Antenna
The XDL24 includes a high-performance RF Antenna covering a frequency range of 2300 to 2690 MHz with an 8.5dBi gain, ensuring enhanced signal strength and stability. XDL24 antenna is equipped with an SMA Male connector.
Rugged datalink
The XDL24 datalink offers fast and secure data transmission, to meet a wide range of needs in different scenarios: point-to-point, point-to-multipoint, and repeater mode. XDL24 features a robust enclosure for extreme durability and a USB-C connection for easy setup and integration.
XBee 3 PRO Zigbee inside
The XDL24 datalink incorporates the advanced Digi XBee® 3 PRO Zigbee 3.0 radio module, enabling seamless communication with other DIGI-enabled devices. This integration not only enhances range and signal strength but also ensures reliable, low-latency data transmission. Its robust connectivity capabilities support extensive, secure networks in challenging environments.
Rugged datalink
The XDL24 datalink offers fast and secure data transmission, to meet a wide range of needs in different scenarios: point-to-point, point-to-multipoint, and repeater mode. XDL24 features a robust enclosure for extreme durability and a USB-C connection for easy setup and integration.
XBee 3 PRO Zigbee inside
The XDL24 datalink incorporates the advanced Digi XBee® 3 PRO Zigbee 3.0 radio module, enabling seamless communication with other DIGI-enabled devices. This integration not only enhances range and signal strength but also ensures reliable, low-latency data transmission. Its robust connectivity capabilities support extensive, secure networks in challenging environments.

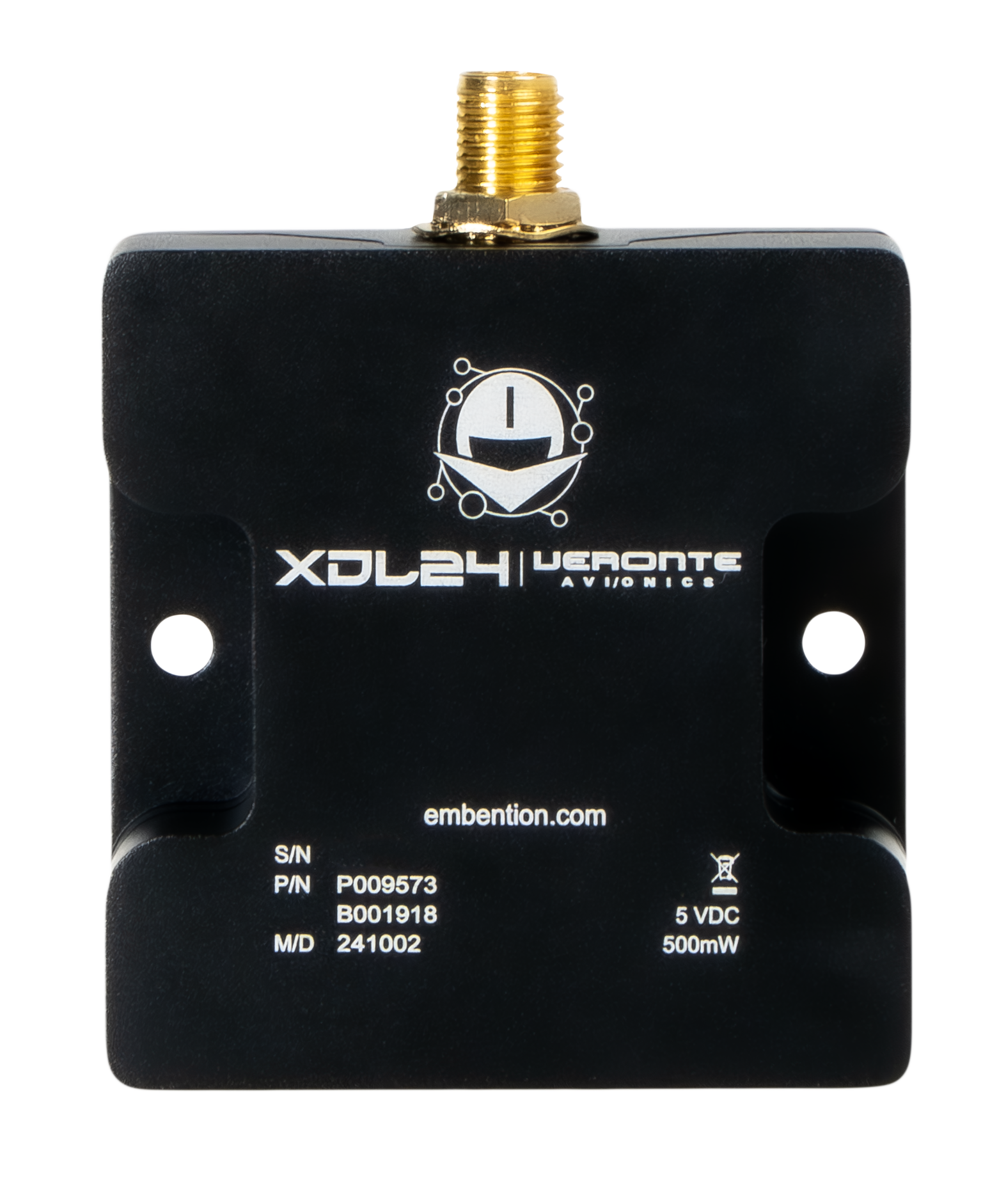

3D Model
Interact with the 3D model and explore every XDL24 detail.
Size
45 x 43mm
Weight
82g
Temperature
-40º to 85ºC
Protection
IP68
Enclosure
Anodized aluminium
Power
5V
Specifications
| Compatibility | Veronte Autopilot | Digi XBee 3 |
| Frequency band | ISM 2.4GHZ |
| Transmit Power | +19dBm |
| Sensitivity | -95dBm |
| I/O Ports | 1x USB-C 2.0 |
| RF Data Rate | 250kbps |
| RF Core | Digi XBee® 3 PRO Zigbee 3.0 |
| RF Connector | SMA Female |
| Datalink module | Veronte XDL24 |
| Cable | USB-C to USB-A | 1m |
| Antenna RF | 2300 to 2690 MHz | 8.5dBi |
| RF Antenna Connector | SMA Male |
| Toolset | Digi XBee Ecosystem |
| Configuration & control | Digi Remote Manager |
| Security & privacy | Digi TrustFence |
| Configuration & testing | Digi XCTU |
| Compatible OS | Windows, MacOS, Linux |
| Operation temperature | -40 to 85ºC |
| Enclosure | Anodized aluminium |
| Protection | IP68 |
| Encryption | AES of 128/256 bits |
| Channels | 16 |
| Installation | Tabletop | Laptop | Screw |
| Mounting | 2x M3 Screws | Double side tape |
| XDL24 weight | 82g |
| Antenna weight | 18g |
| Supply voltage | 5V |
| Power Consumption | 0,5W |
| Core Approvals | FCC, RCM, Anatel |
Price
| XDL24 Datalink 1.0 (2.4GHz – TM/TC) | 500€ |
Note: Custom C++, simulation and other advanced tools excluded.
