Avionics MEX
Magnetometer and I/O extension

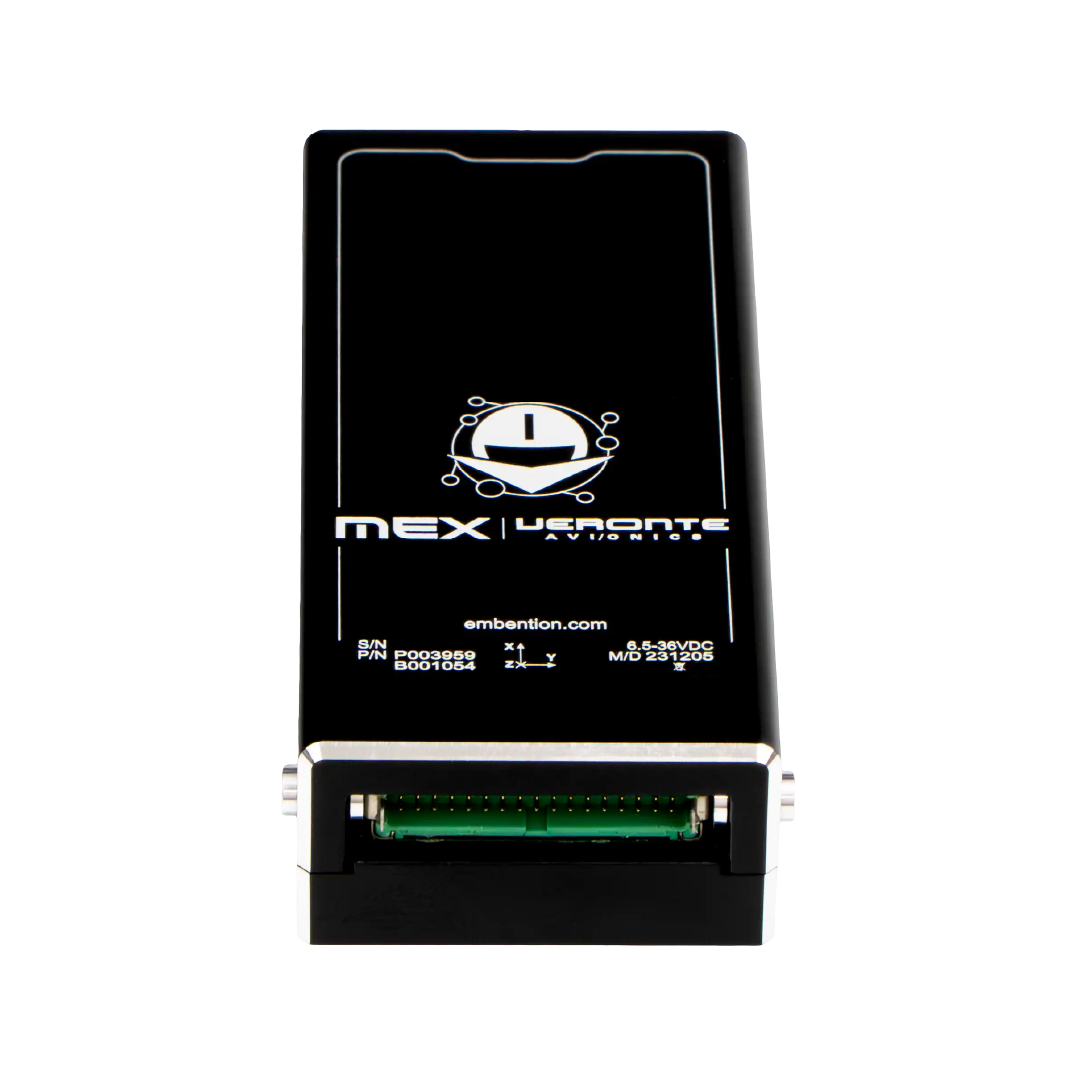

Veronte Avionics’ MEX magnetic compass is a powerful peripheral that includes functionality to improve I/O connectivity in Veronte Autopilot, reducing wiring in autonomous vehicles and increasing the number of devices in the system.
Avionics MEX
Magnetómetro y ampliación de I/O
Veronte Avionics’ MEX magnetic compass is a powerful peripheral that includes functionality to improve I/O connectivity in Veronte Autopilot, reducing wiring in autonomous vehicles and increasing the number of devices in the system.
Magnetometer
I/O expander
Wiring Optimization
CAN Bus Management
Three Axis Orientation
Compass for UAVs and eVTOLs
Magnetometer for high performance avionics
3-axis magnetometer
The magneto-inductive geomagnetic sensor technology provides high resolution, low power consumption, immunity to large signal noise, a wide dynamic range and high sampling rates to measure the X, Y and Z vector components of the magnetic field.
I/O Expansion Module
Veronte Avionics MEX increases the capacity of input and output ports on Veronte autopilots or other devices. It can be used both to expand I/O in the system and to connect devices with weak signals using a robust communication protocol.
CAN Bus Management
The built-in microcontroller performs real-time monitoring of the CAN bus and, in case of anomaly or malfunction, disconnects the equipment, isolating it from the critical communication bus. Redundancy and isolation in the system’s power supply make it resistant to failures.
Expansor I/O
CAN Bus Management
Optimización de cableado
Magnetómetro
Orientación en tres ejes
Brújula para UAV y eVTOL
Magnetómetro para aviónica de alto rendimiento
3-axis magnetometer
The magneto-inductive geomagnetic sensor technology provides high resolution, low power consumption, immunity to large signal noise, a wide dynamic range and high sampling rates to measure the X, Y and Z vector components of the magnetic field.
I/O Expansion Module
Veronte Avionics MEX increases the capacity of input and output ports on Veronte autopilots or other devices. It can be used both to expand I/O in the system and to connect devices with weak signals using a robust communication protocol.
CAN Bus Management
The built-in microcontroller performs real-time monitoring of the CAN bus and, in case of anomaly or malfunction, disconnects the equipment, isolating it from the critical communication bus. Redundancy and isolation in the system’s power supply make it resistant to failures.
Wiring Optimization
Veronte Avionics Mex, in addition to being a magnetometer, increases the number of devices in the system. MEX becomes a quick solution to increase connectivity capacity and allow for cabling optimization, especially in large systems.

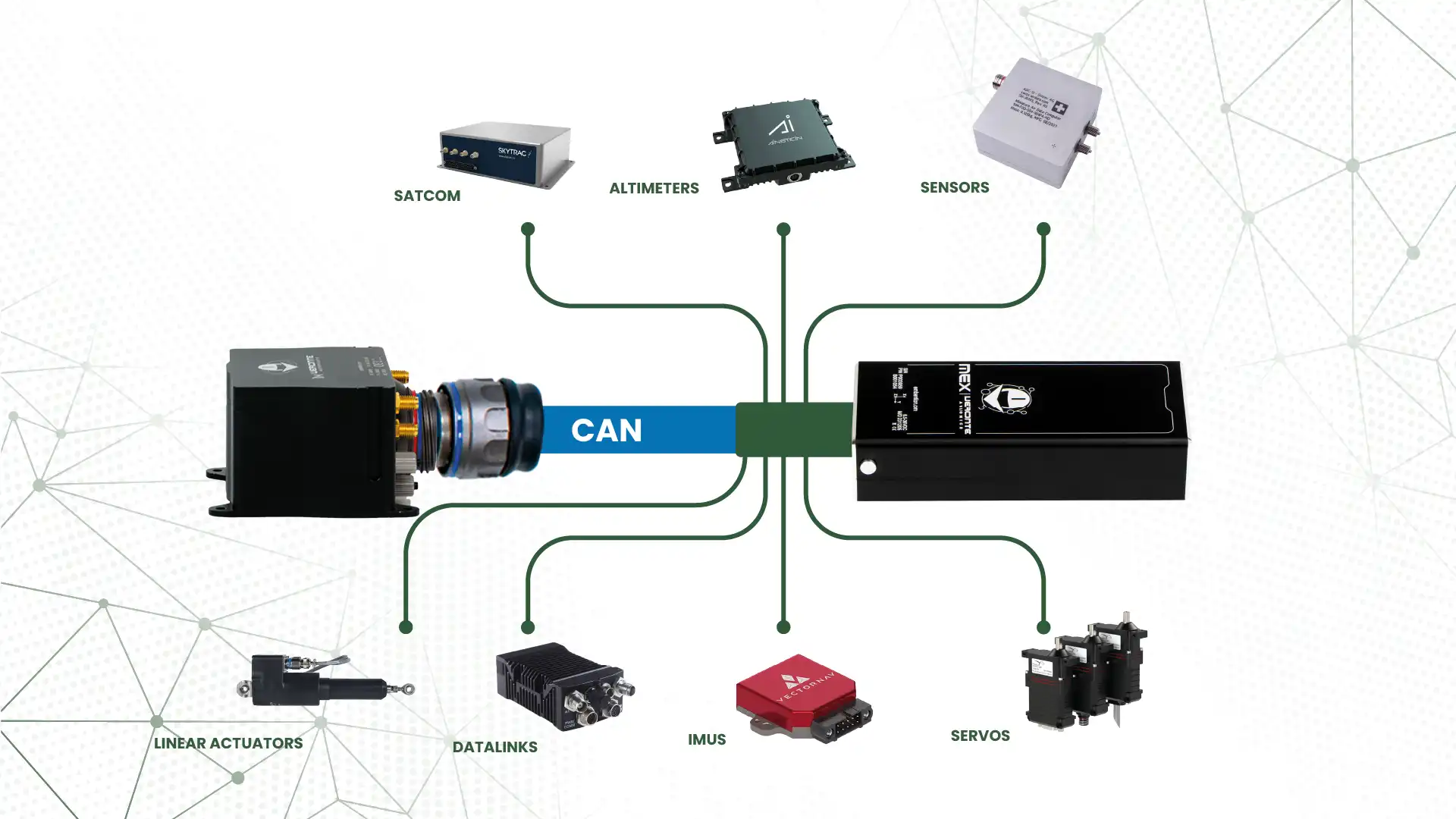

I/O Expander Port
Mex increases the number of ports, adding RS232, PWM, RS485, I2C to Veronte Autopilot.

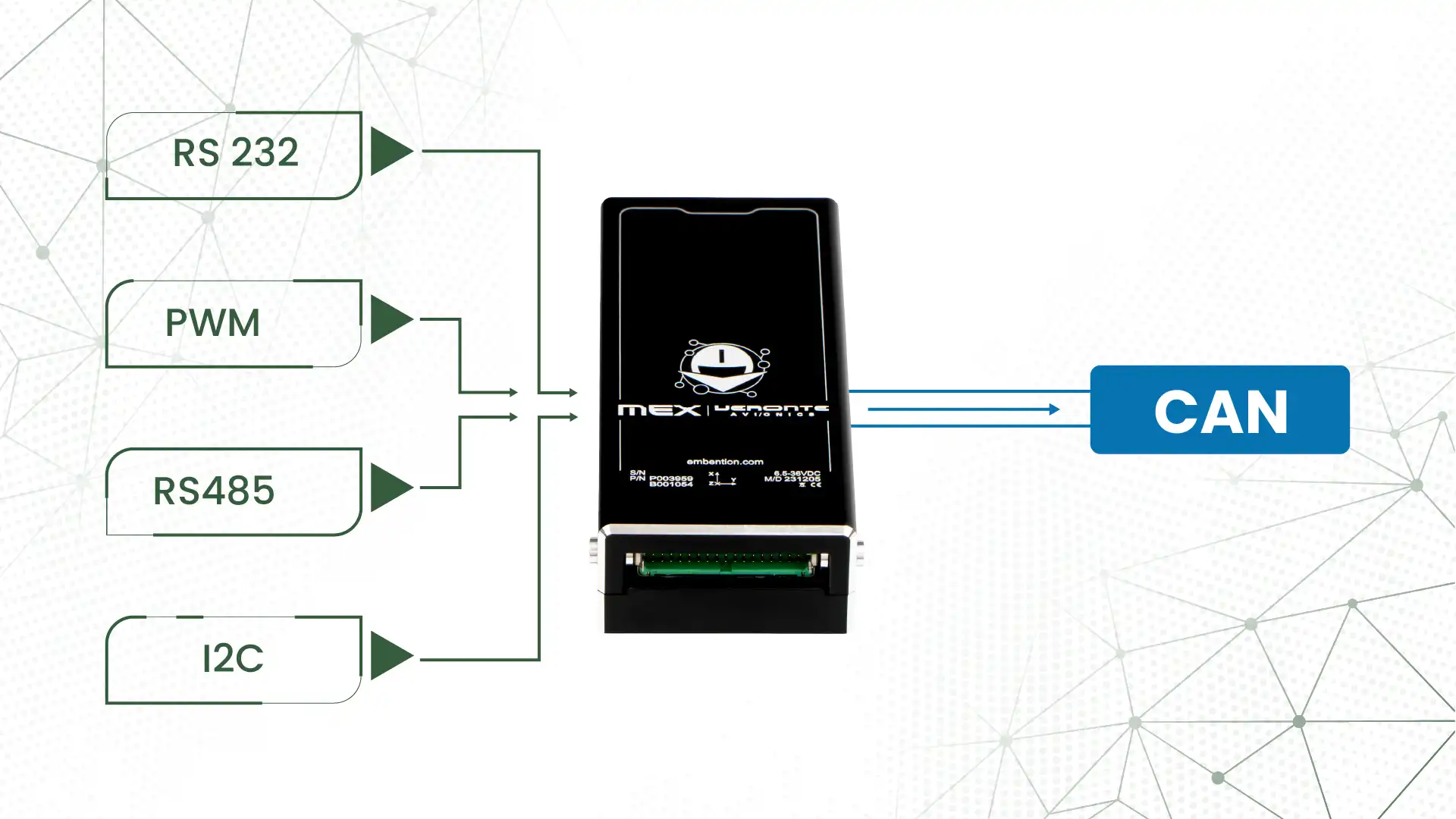

Data Concentrator
The redundant CAN bus increases data capacity by concentrating signals from other ports.

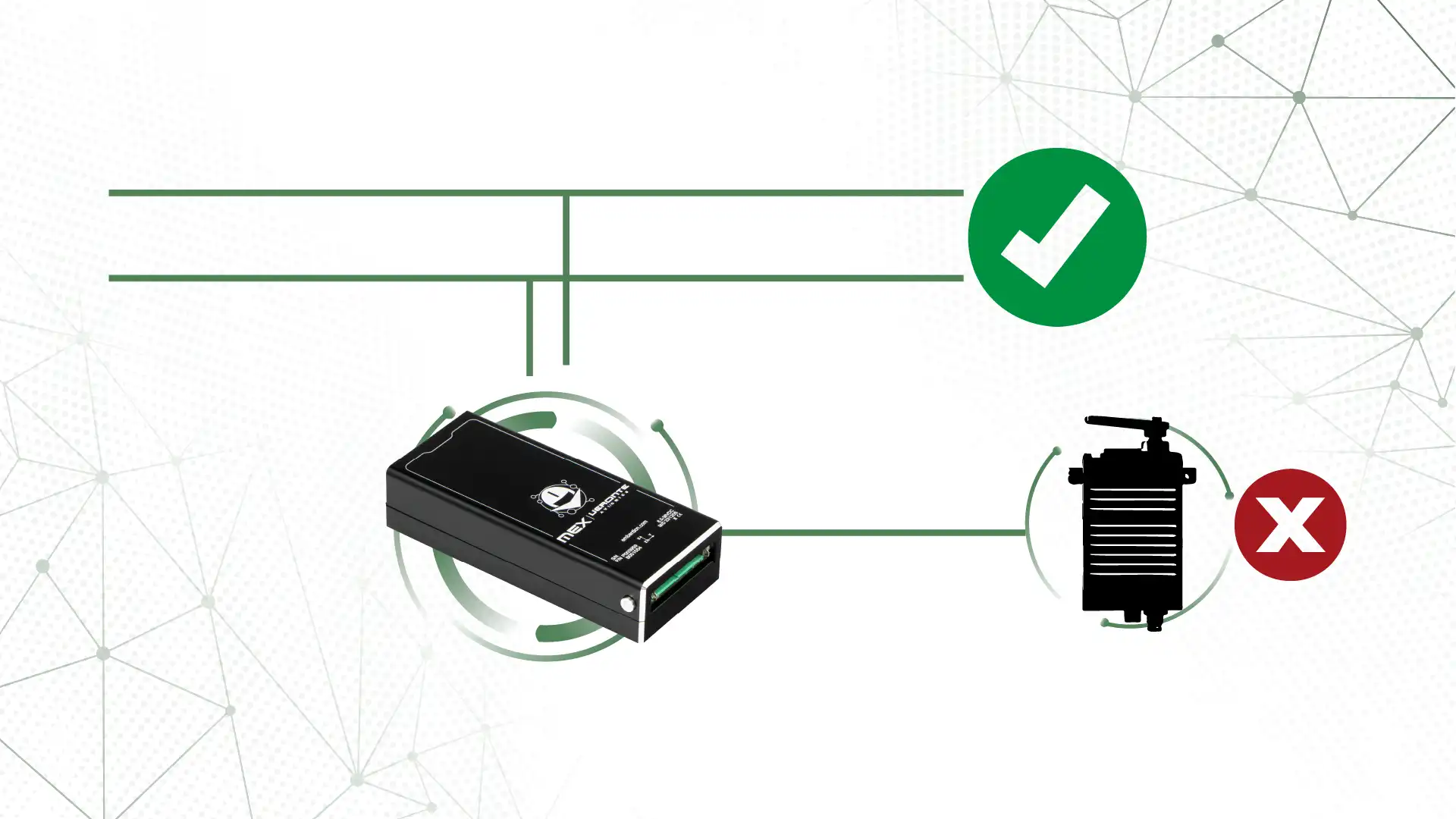

CAN Bus protection
In case of anomaly or malfunction, Mex will isolate the faulty devices from the bus.
Optimización de cableado
Veronte Avionics Mex, además de ser un magnetómetro, aumenta el número de dispositivos del sistema. MEX se convierte en una solución rápida para aumentar la capacidad de conectividad y permitir la optimización del cableado, especialmente en sistemas de gran tamaño.
Puerto Expansor I/O
Mex aumenta el número de puertos, añadiendo RS232, PWM, RS485, I2C al Autopiloto Veronte.
Data Concentrator
Redundant CAN bus incrementa la capacidad, concentrando señales desde otros puertos.
Protección del CAN Bus
En caso de anomalía o mal funcionamiento, Mex aislará del Bus los dispositivos que fallen.
Advanced Magnetic Compass
It uses magneto-inductive technology to measure the magnetic field in 3 axes.
Magneto Inductive Technology
Geomagnetic sensor technology offers high resolution, significant immunity to signal noise, wide dynamic range and high sampling rates.
Orientation in 3 Axes
The magnetic compass detects the direction and strength of a magnetic field, including the Earth’s magnetic field, to provide altitude and orientation references for any vehicle.
HMR2300 spare part
Veronte Avionics MEX is a direct replacement for Honeywell MHR-2300 through the serial port. It was widely used in drones and other autonomous vehicles.
Brújula magnética avanzada
Utiliza tecnología magneto-inductiva para medir el campo magnético en 3 ejes.
Magneto Inductive Technology
Geomagnetic sensor technology offers high resolution, significant immunity to signal noise, wide dynamic range and high sampling rates.
Orientation in 3 Axes
The magnetic compass detects the direction and strength of a magnetic field, including the Earth’s magnetic field, to provide altitude and orientation references for any vehicle.
HMR2300 spare part
Veronte Avionics MEX is a direct replacement for Honeywell MHR-2300 through the serial port. It was widely used in drones and other autonomous vehicles.
Robust Performance

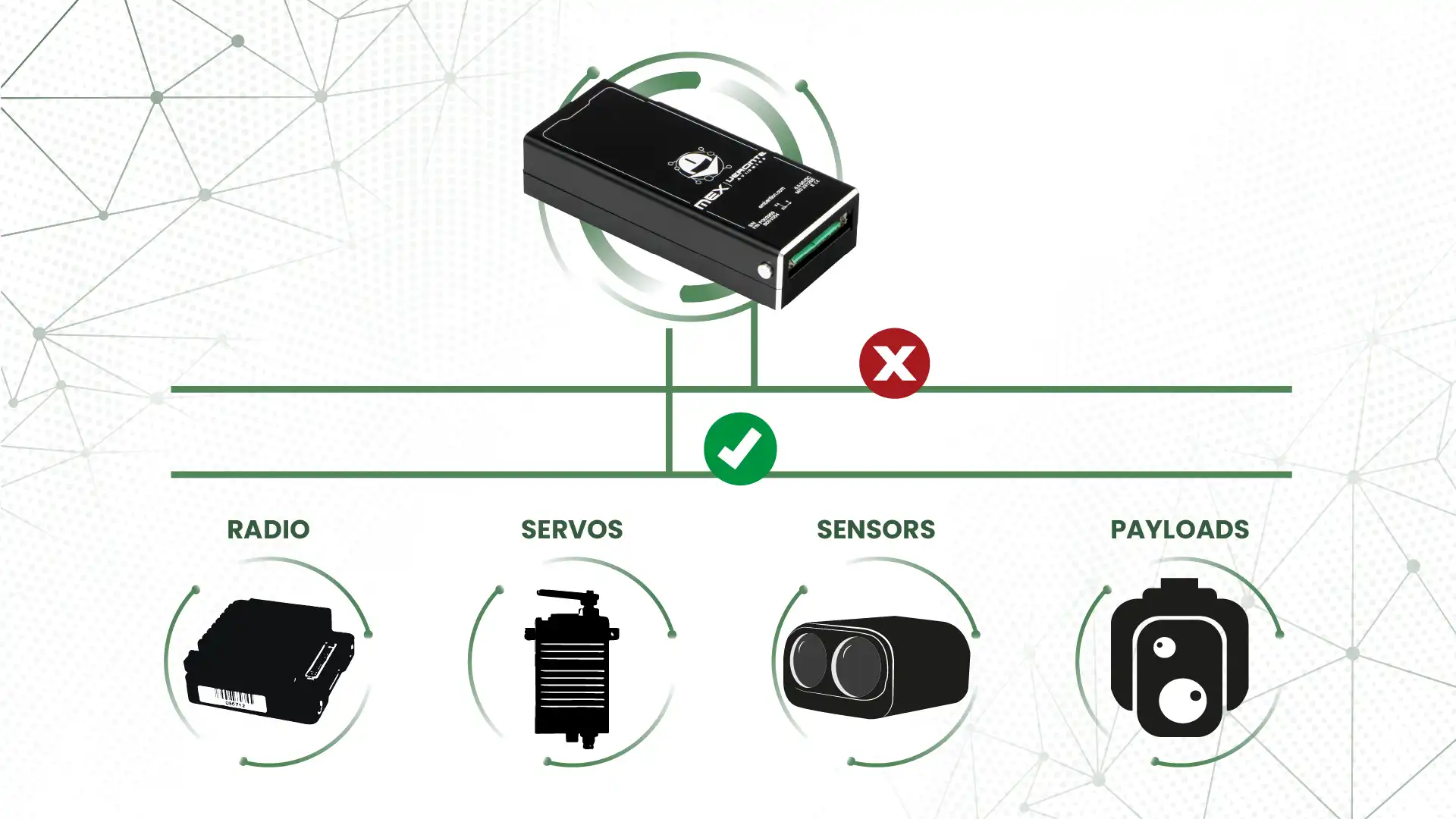

Redundant Communication
One of the advantages of Veronte MEX is the robustness of CAN Bus communications. It includes a redundant CAN Bus with galvanic isolation, so it can continue to operate and communicate with the autopilot even if a CAN Bus line is broken.

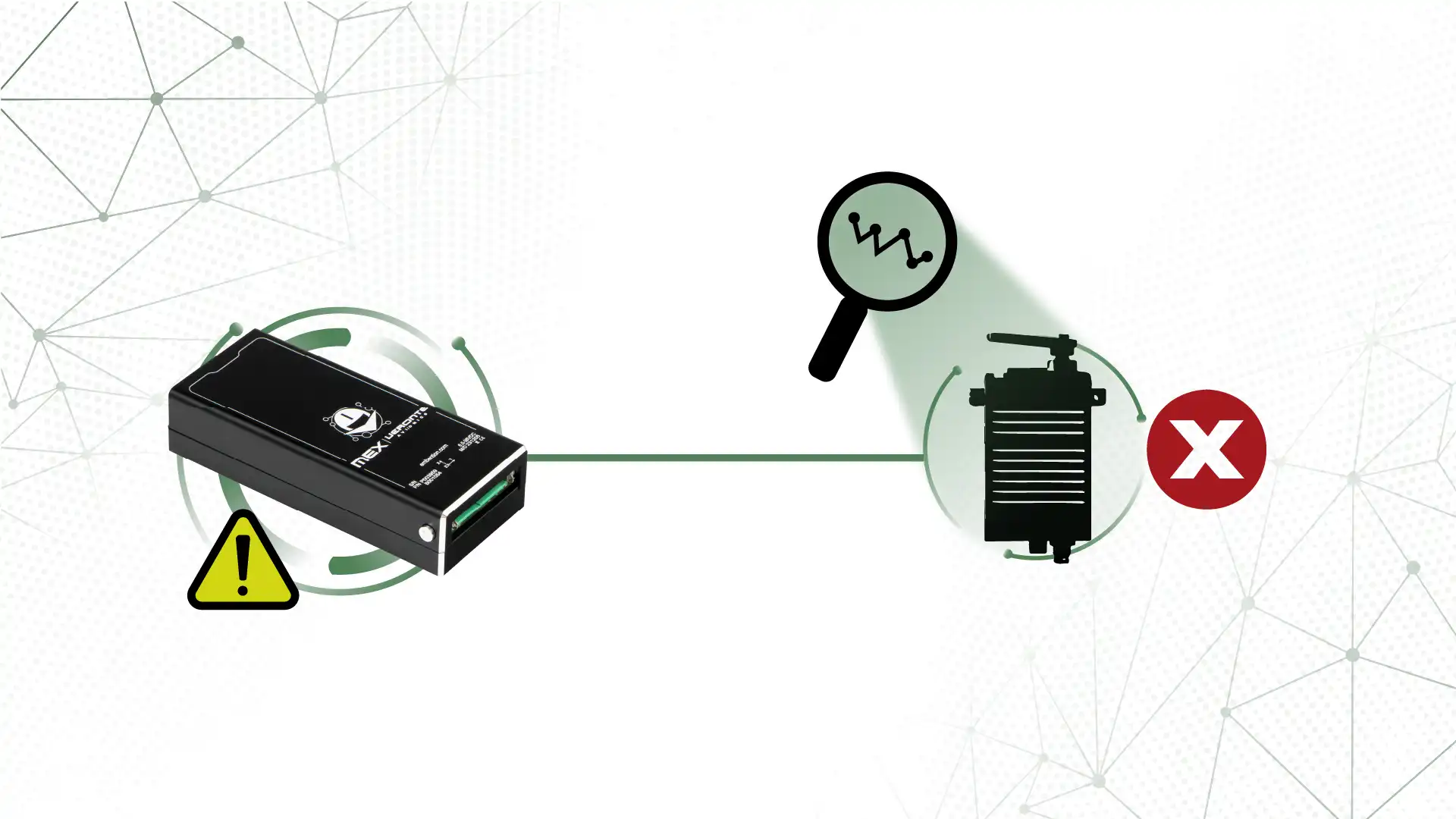

Fault Detection
The system incorporates algorithms for message filtering and detection of “chattering idiot faults”. Equipped with an integrated microcontroller, it performs real-time monitoring of the CAN Bus to be able to react quickly in case of anomalies or failures on the Bus.

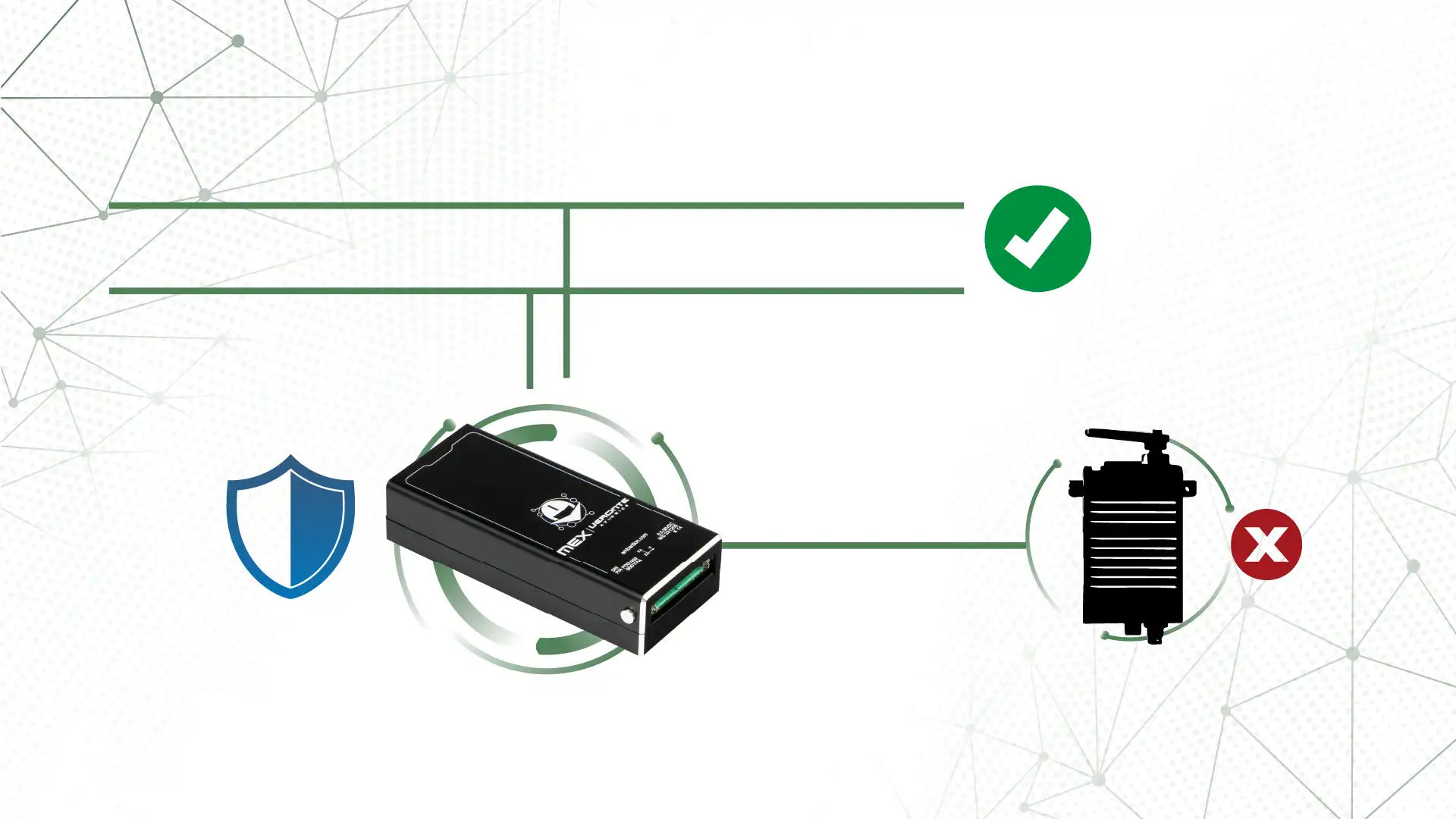

Peripheral Isolation
The advanced control of actuators and peripherals becomes feasible, being possible to condense the connection of control, feedback, sensors… using several analog, digital, serial ports, etc. on a redundant CAN bus robust to failures and line breaks.
Robustness and Flexibility

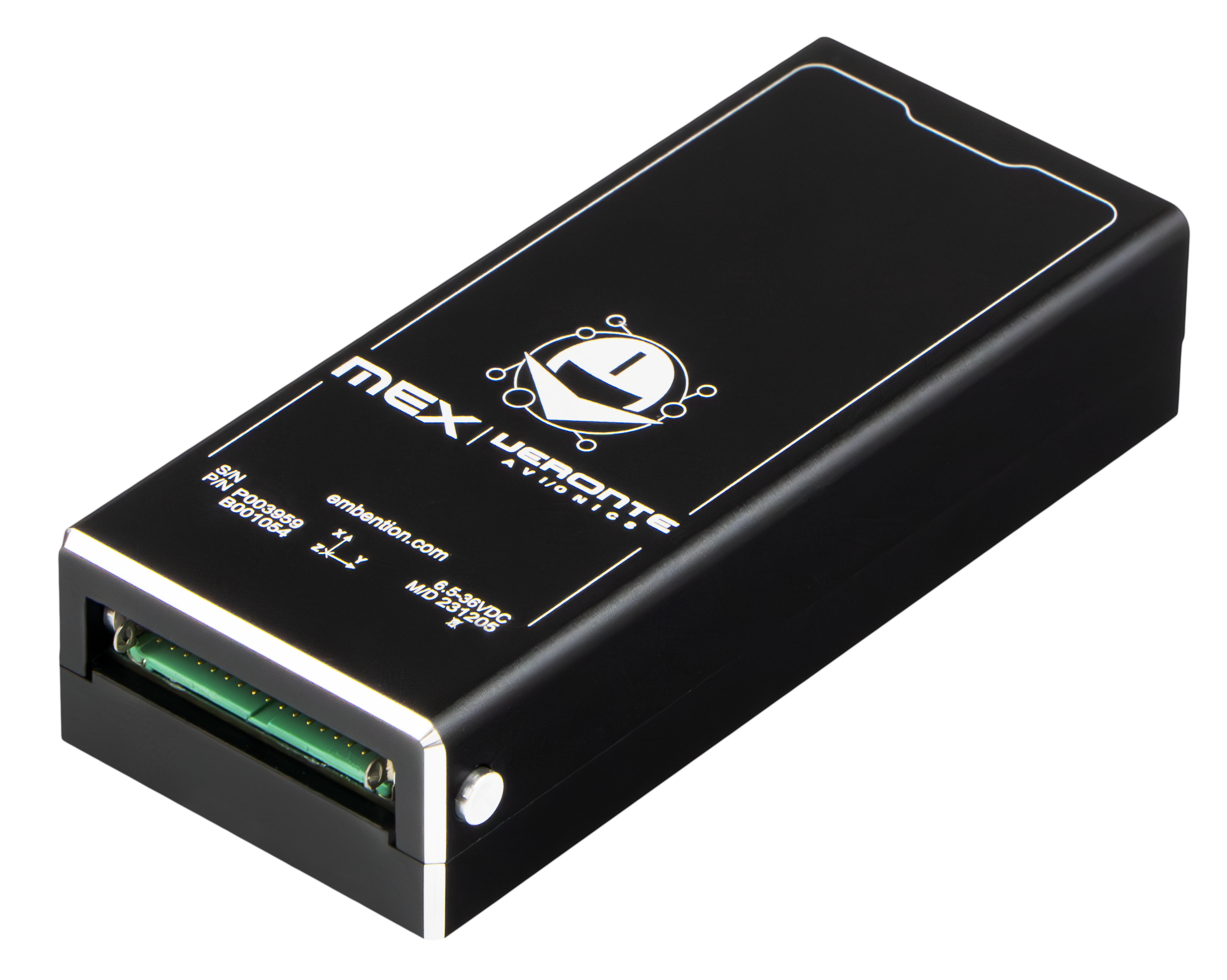

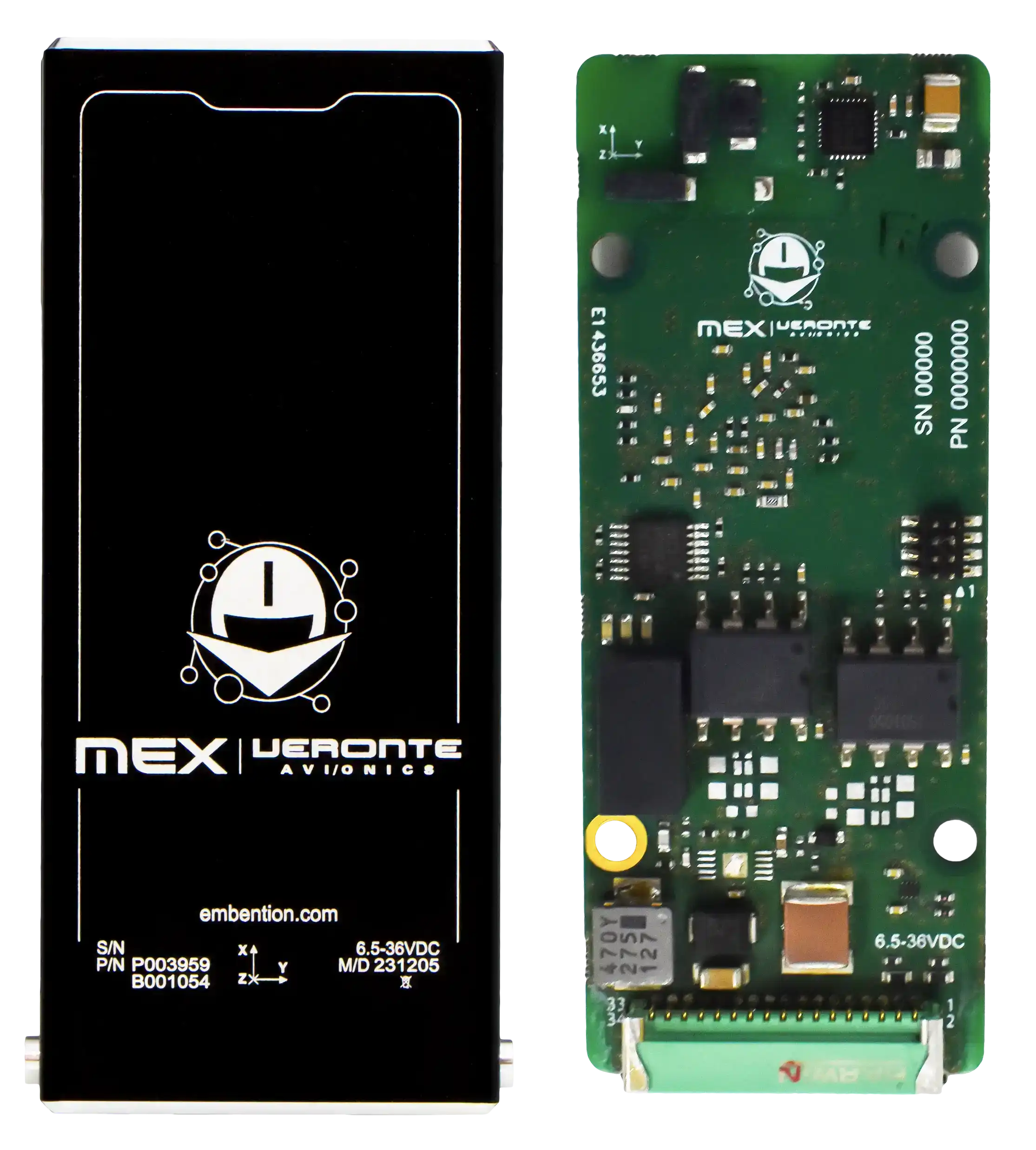

Offered in two different versions: Veronte MEX (protected by a 6061-T6 anodized aluminum housing) and Veronte MEX OEM (smaller and lighter, but requires mechanical protection when installed). Both versions feature reverse polarity protection, ESD protection and independent power supplies to ensure system robustness.
Certifiable
During the development of Veronte Avionics MEX, the aviation design standards DO178C / ED-12 and DO254 / ED 80 are followed. This allows to ensure hardware and software reliability for eVTOL and UAV certification, as well as for installation on critical autonomous vehicles. In addition, DO160 and MIL-STD-810 tests ensure robustness against adverse environmental conditions.
Robustez y flexibilidad
Se ofrece en dos versiones diferentes: Veronte MEX (está protegido por una carcasa de aluminio anodizado 6061-T6) y Veronte MEX OEM (es más pequeño y ligero, pero requiere protección mecánica cuando se instala). Ambas versiones vienen con protección contra inversión de polaridad, protección ESD y fuentes de alimentación independientes para garantizar la robustez del sistema.
Certifiable
Durante el desarrollo de Veronte Avionics MEX se siguen las normas de diseño aeronáutico DO178C / ED-12 y DO254 /ED 80. Permite garantizar la fiabilidad del hardware y el software para la certificación eVTOL y UAV y para la instalación en vehículos autónomos críticos. Además, los permisos de ensayo DO160 y MIL-STD-810 garantizan la robustez frente a condiciones ambientales adversas.
Modelo 3D
Interactúa con el modelo 3D y explora cada detalle del MEX.
Tamaño
19 x 38 x 83mm
Peso
100g | 50g OEM
Temperatura
-40º a 60ºC
Estándares
DO178C / DO254
MTBF
10⁵
Potencia
3W | 6.5-36VDC
Especificaciones
- Caracteristicas Principales
- Extensión de I/O e interfaces de datos
- Sensor magnetométrico
- Construcción Robusta
- Seguridad y certificación
| Magnetómetro | 3-Ejes | HMR 2300 repuesto drop-in |
| Ampliación de I/O | Ampliación del número de I/O |
| Concentrador de datos | CAN Bus a serie, entrada digital, analógica, etc. |
| Red | Filtrado de mensajes | Generación de subredes |
| Protección Bus | Detección de fallos | Fallo del idiota parlanchín |
| Aislamiento Bus | Aislamiento de dispositivos |
| Optimización del cableado | Largas distancias | Protección | Bus robusto |
| Interfaz de dispositivos | Sensores, actuadores, ESC, ADS-B, carga útil, etc. |
| Buses | 2x CAN Bus | 2x RS232 | 1x RS485 | 1x I2C |
| I/O Digital | 4x 5VDC PWM | 2x 5VDC ECAP | 1x EQEP |
| I/O Analógico | 2x5V | 1x12V | 1x36V |
| Potencia de salida | 1x 3.3VDC (100 mA) | 1x 5VDC (100mA) |
| Bus CAN | Doble redundancia | Aislamiento galvánico |
| Resistencia terminal | Software configurable |
| Tecnología | Magneto-inductiva |
| Ejes | 3-Ejes |
| Alcance | ± 1100 μT |
| Ruido | 15 nT |
| Ganancia | 75 μT |
| Linealidad | 0.5% (typical) |
| Sensibilidad | 13 nT |
| Frecuencia de muestreo máx. | 147 Hz |
| Protecciones de circuito | ESD, sobretemperatura, cortocircuito |
| Protección eléctrica | Protección contra polaridad inversa |
| Conector | 34 Pin | Latch | Robusto a las vibraciones |
| Construcción | Aluminio anodizado |
| Temperatura | -40 a 60ºC |
| Peso | 100g | 50g OEM |
| Entrada de alimentación | 6 – 36VDC | Entrada de alimentación redundante |
| Potencia | 3W |
Precio
| MEX 1.0 | 900€ |
| MEX OEM 1.0 | 800€ |
