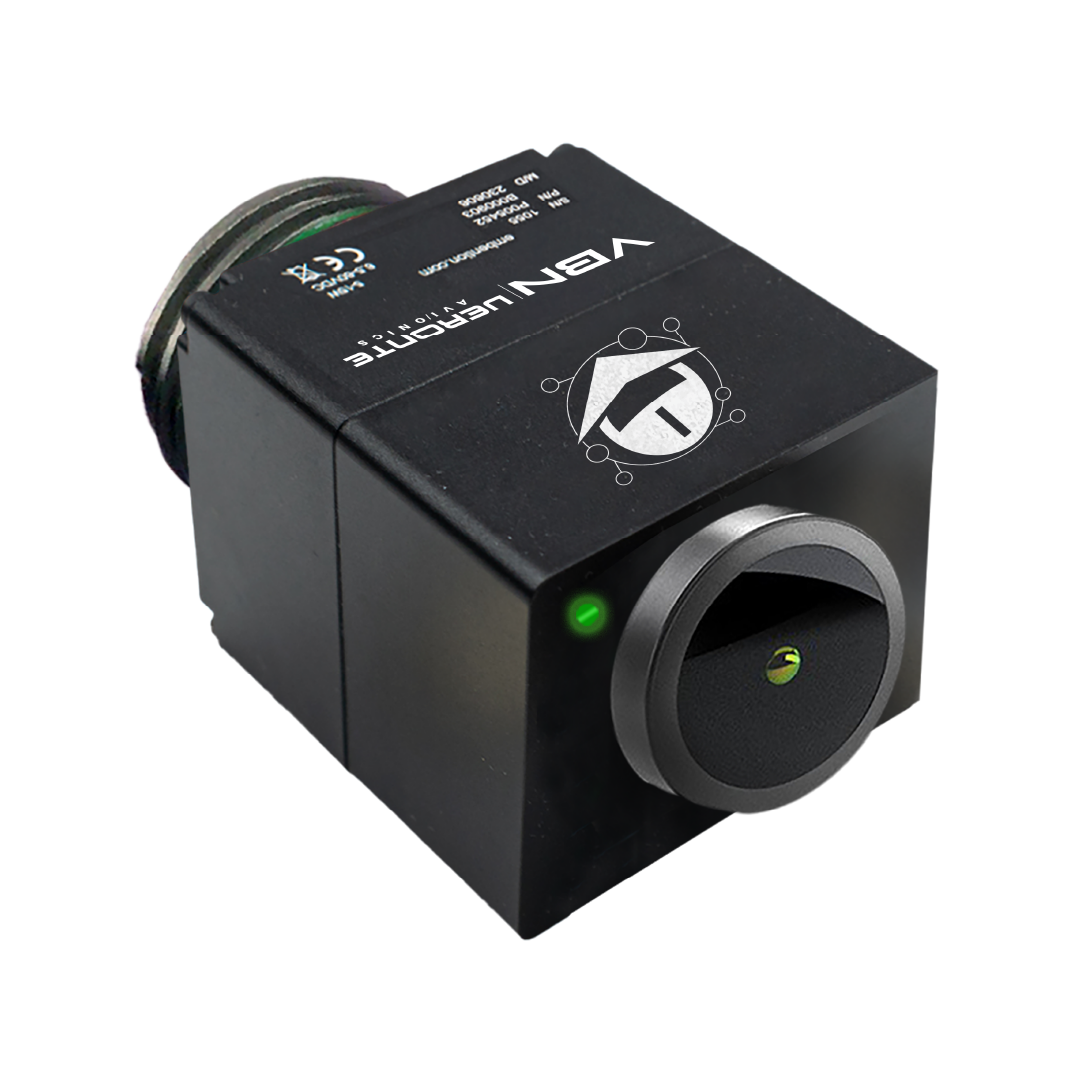

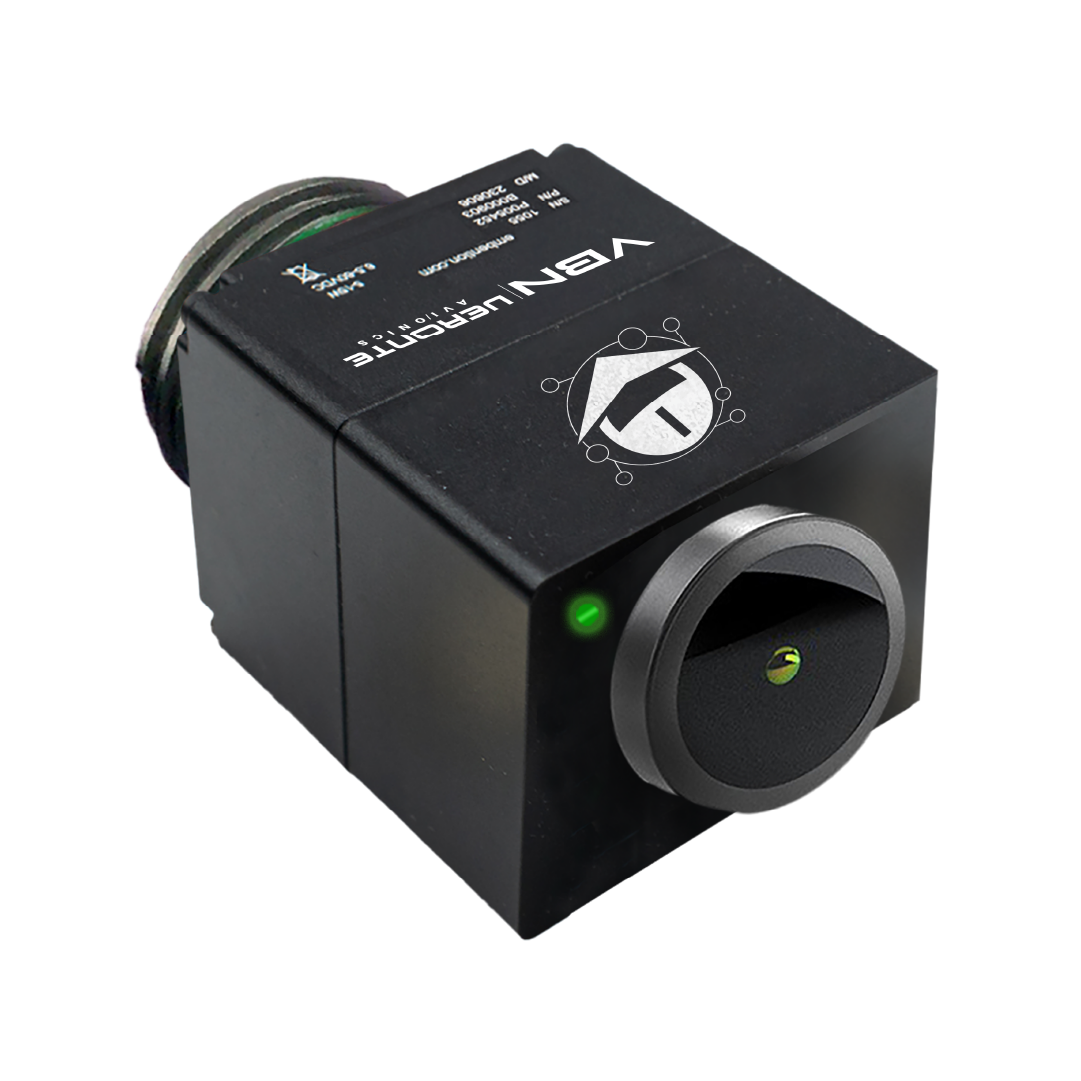

Autopilots VBN
Vision Based Navigtion system
Visual navigation system with advanced computer vision capabilities to revolutionize autonomous navigation. Equipped with algorithms for GNSS-denied and Sense and Avoid functionalities, it’s a prime choice for UAV and eVTOL certification.
Autopilot VBN
Wiring Optimization

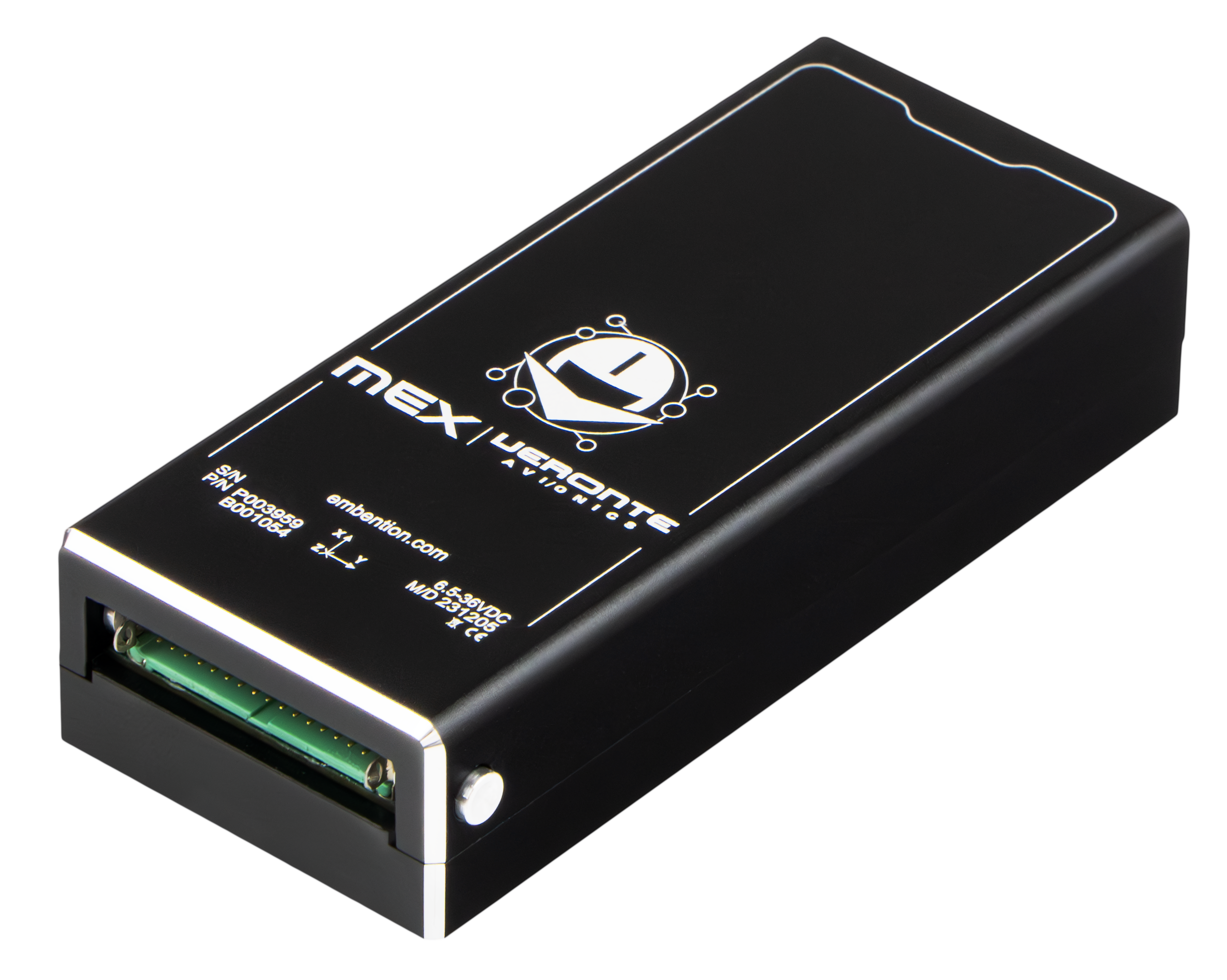

Veronte Avionics Mex, in addition to being a magnetometer, increases the number of devices in the system. MEX becomes a quick solution to increase connectivity capacity and allow for cabling optimization, especially in large systems.
I/O Expander Port
Mex increases the number of ports, adding RS232, PWM, RS485, I2C to Veronte Autopilot.
Data Concentrator
The redundant CAN bus increases data capacity by concentrating signals from other ports.
CAN Bus protection
In case of anomaly or malfunction, Mex will isolate the faulty devices from the bus.
Advanced Magnetic Compass
It uses magneto-inductive technology to measure the magnetic field in 3 axes.
EN BLANCO
Magneto Inductive Technology
Geomagnetic sensor technology offers high resolution, significant immunity to signal noise, wide dynamic range and high sampling rates.
Orientation in 3 Axes
The magnetic compass detects the direction and strength of a magnetic field, including the Earth’s magnetic field, to provide altitude and orientation references for any vehicle.
HMR2300 spare part
Veronte Avionics MEX is a direct replacement for Honeywell MHR-2300 through the serial port. It was widely used in drones and other autonomous vehicles.
Robust Performance
Redundant Communication
One of the advantages of Veronte MEX is the robustness of CAN Bus communications. It includes a redundant CAN Bus with galvanic isolation, so it can continue to operate and communicate with the autopilot even if a CAN Bus line is broken.
Fault Detection
The system incorporates algorithms for message filtering and detection of “chattering idiot faults”. Equipped with an integrated microcontroller, it performs real-time monitoring of the CAN Bus to be able to react quickly in case of anomalies or failures on the Bus.
Peripheral Isolation
The advanced control of actuators and peripherals becomes feasible, being possible to condense the connection of control, feedback, sensors… using several analog, digital, serial ports, etc. on a redundant CAN bus robust to failures and line breaks.
Robustness and Flexibility

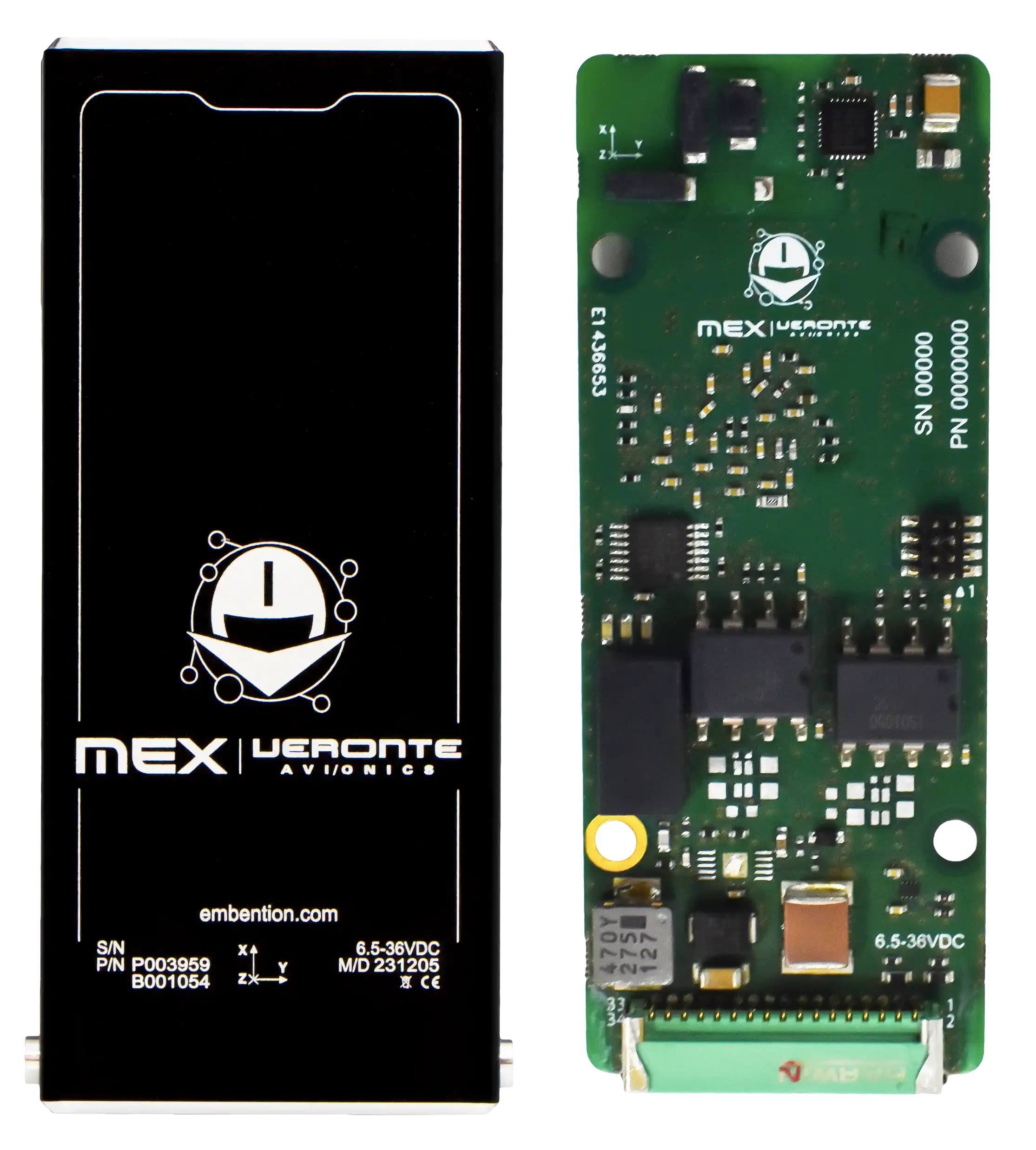

Offered in two different versions: Veronte MEX (protected by a 6061-T6 anodized aluminum housing) and Veronte MEX OEM (smaller and lighter, but requires mechanical protection when installed). Both versions feature reverse polarity protection, ESD protection and independent power supplies to ensure system robustness.
Certifiable
During the development of Veronte Avionics MEX, the aviation design standards DO178C / ED-12 and DO254 / ED 80 are followed. This allows to ensure hardware and software reliability for eVTOL and UAV certification, as well as for installation on critical autonomous vehicles. In addition, DO160 and MIL-STD-810 tests ensure robustness against adverse environmental conditions.
Specifications
| Navigation | Positioning & attitude |
| DAA | Obstacle detection and identification |
| Stereoscopic | Dual camera for advanced performance |
| Integration | Embedded camera |
| Software | DAA or GNSS denied modules |
| Certification | Designed to meet aircraft certification |
| Obstacle | Detection & recognition |
| Recognition | IA technology |
| Output | Size | Speed | Direction | Position | Identification |
| Postion | Relative or absolute |
| IFF | Identification Friend or Foe |
| Target | Moving or static object follow |
| Position | Absolute positioning |
| Altitude | AGL estimation |
| Attitude | Yaw, pitch & roll |
| Technology | SLAM |
| Maps | Not required |
| Software | DO178C |
| Hardware | DO254 |
| Environmental | DO160 |
| DAA | DO365B |
| Protections | ESD, overtemperature, short circuit, RP |
| Robust Manuf. | ATR, DDP & DoD | ESS |
| I/O | CAN Bus | RS232 | RS485 |
| Conector | Circular rugged |
| Power Input | 6.5 – 36VDC | 10W | Redundant power input |
| Construction | Anodized aluminum | IP67 |
| Temperature | -40 to 60ºC |
| Weight | 110g |
Price
| VBN 1.0 | 14900€ |
